Terminal effect plugins¶

KorTTY terminal-effect plugins are Java ServiceLoader plugins that can change the appearance and runtime behavior of a terminal session. They are trusted local code that runs inside the KorTTY JVM and integrate through a clean SPI interface.

Capabilities¶

A terminal-effect plugin can:

• Apply terminal appearance values such as font, foreground/background colors, cursor color, and cursor style
• Add JavaFX overlay nodes above the terminal area (for example scanlines, noise, vignettes, or line highlights)
• Wrap the SithTermFX TtyConnector to observe, pace, or transform terminal output before the terminal emulator receives it
• React to the user-selected terminal-effect animation speed
• Provide an animated preview that the plugin manager shows for the selected plugin (optional createPreview())

Built-in Effects¶

KorTTY ships eleven built-in effects as two bundled, exportable plugin JARs: the MOTHER reference implementation (kortty-terminal-effect-mother.jar) and the effect pack (kortty-terminal-effect-pack.jar) with ten themed effects.

All built-in effects override the terminal appearance (font, colors, cursor) while active and draw their animation as a mouse-transparent canvas overlay. Typewriter Noir additionally wraps the connector to pace output character by character. Effect names are proper nouns and stay untranslated; descriptions are localized through the plugin.terminalEffects.desc.* message keys with an English fallback.

Runtime Model¶

Terminal-effect plugins are loaded by de.kortty.core.TerminalEffectPluginManager in this order:

1. Application classpath plugins
2. Bundled plugin JARs listed by bundled-plugins/terminal-effects.index
3. External JARs copied into ~/.kortty/plugins

If two plugins expose the same plugin ID, the first one wins and later duplicates are ignored. This is intentional because connection settings persist the plugin ID.

External plugins are loaded from one JAR at a time with KorTTY's application classloader as parent. Dependencies that are already part of KorTTY can be used from that parent classloader. Dependencies that are not part of KorTTY are not discovered from adjacent files automatically; either avoid them or shade them into the plugin JAR.

Plugin Management in the UI¶

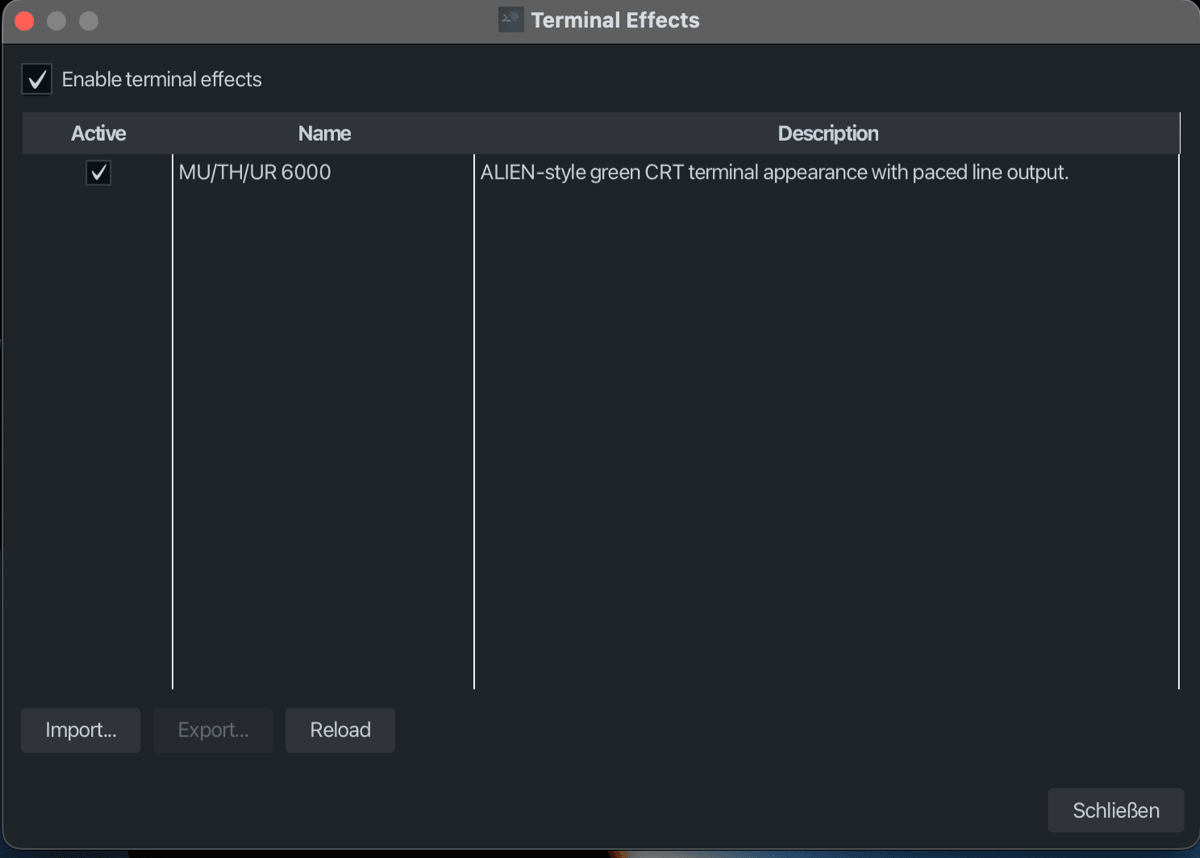

Users manage terminal-effect plugins from Plugins > Terminal Effects.

The Terminal Effects manager window is resizable, so you can expand the plugin table and descriptions while keeping the live preview visible. If tool windows are configured to open as tabs, the manager instead uses the available main-window tab area.

The dialog shows the loaded plugin list with:

• Active/inactive state
• Display name
• Short description

Next to the table, a preview panel plays a live animated preview of the selected plugin (a small fake terminal in the effect's colors with the effect overlay on top). If a plugin does not implement createPreview(), the panel shows a placeholder text instead. The preview stops when the selection changes, the global terminal-effects switch is turned off, or the dialog closes.

Users can:

• Enable or disable a plugin
• Import an external .jar plugin, which KorTTY copies to ~/.kortty/plugins
• Export plugins that have a source JAR (the bundled MOTHER and effect-pack JARs are exportable)

Users select effects per terminal session from the terminal context menu or View > Terminal Effect. Saved connections can also store the selected effect and animation speed through Quick Connect and Connection Manager. The speed slider covers 1x through 10x; the numeric field accepts values up to 99x.

SPI Classes¶

The public SPI lives under de.kortty.plugin.terminaleffects.

TerminalEffectPlugin¶

Implement TerminalEffectPlugin as the ServiceLoader entry point.

public interface TerminalEffectPlugin {
    String id();
    String displayName();
    default String description() { return ""; }
    TerminalEffectSession createSession(TerminalEffectContext context);
    default TerminalEffectPreview createPreview() { return null; }
}

Rules:

• id() must be stable because connection settings and disabled-plugin state persist it
• Valid IDs match the regex [a-z0-9][a-z0-9._-]{0,63}
• displayName() must not be blank
• description() is shown in the plugin-management table and should be one short sentence
• The provider class must be loadable by ServiceLoader; use a public class with a public no-argument constructor
• createPreview() is optional; returning null (the default) shows a placeholder in the plugin manager

TerminalEffectSession¶

createSession returns one TerminalEffectSession per terminal tab/effect activation.

public interface TerminalEffectSession extends AutoCloseable {
    default void start() {}

    default @NotNull TtyConnector wrapConnector(
            @Nullable SithTermFxWidget widget,
            @NotNull TtyConnector connector) {
        return connector;
    }

    default void stop() {}
}

Responsibilities:

• Allocate UI resources in start()
• Decorate connectors in wrapConnector(...) when output pacing or filtering is needed
• Remove listeners, stop timelines, unbind properties, and release references in stop()

stop() must be idempotent. It can be called when a user disables the effect, switches effects, closes a tab, or reloads plugins.

TerminalEffectContext¶

TerminalEffectContext exposes the active terminal environment:

JavaFX scene-graph changes must run on the JavaFX application thread. If a callback can arrive from a terminal worker thread, use Platform.runLater(...) for overlay or UI updates.

TerminalEffectAppearance¶

TerminalEffectAppearance is a record with nullable fields:

public record TerminalEffectAppearance(
        @Nullable String fontFamily,
        @Nullable Integer fontSize,
        @Nullable String foregroundColor,
        @Nullable String backgroundColor,
        @Nullable String cursorColor,
        @Nullable String cursorStyle) {
}

Use only the fields your effect needs. null leaves the current value unchanged.

The current implementation passes color values as strings, for example #19FF4C. Cursor style is also a string; the MOTHER effect uses BLINK_BLOCK. Reuse values already accepted by KorTTY's terminal settings instead of inventing new names.

TerminalEffectPreview¶

createPreview() returns the animated preview shown in the plugin manager:

public interface TerminalEffectPreview {
    @NotNull Node node();
    default void start() {}
    default void stop() {}
}

Contract:

• One preview instance backs one displayed preview; the caller requests node() once, calls start() after attaching it, and stop() before discarding it
• Do not construct JavaFX objects before node() is called, so plugin metadata stays usable without a running JavaFX toolkit
• stop() must stop all timelines and release animation resources

TerminalEffectPreviewCanvas (same package) is a reusable implementation used by all built-in effects: a 360x220 fake terminal with configurable colors, fake shell lines, a blinking cursor, and an optional effect overlay canvas on top. Its builder collects plain data only and creates JavaFX nodes lazily in node().

TerminalEffectConnectorWrapper¶

If a plugin wraps a connector, implement TerminalEffectConnectorWrapper and delegate all TtyConnector methods to the wrapped connector unless the effect intentionally changes that method.

public interface TerminalEffectConnectorWrapper extends TtyConnector {
    TtyConnector delegate();
}

KorTTY uses this marker to unwrap effect connectors before applying another wrapper or before accessing the underlying SSH connector. Without it, reconnect, drag/drop upload, AI-agent current-directory tracking, or future connector-level features can see the wrong connector.

Minimal Plugin Example¶

Directory layout:

example-terminal-effect/
├── build.gradle.kts
└── src/main
    ├── java/com/example/kortty/effects/AmberTerminalEffectPlugin.java
    └── resources/META-INF/services/de.kortty.plugin.terminaleffects.TerminalEffectPlugin

ServiceLoader descriptor (META-INF/services/de.kortty.plugin.terminaleffects.TerminalEffectPlugin):

com.example.kortty.effects.AmberTerminalEffectPlugin

Example implementation:

package com.example.kortty.effects;

import de.kortty.plugin.terminaleffects.TerminalEffectAppearance;
import de.kortty.plugin.terminaleffects.TerminalEffectContext;
import de.kortty.plugin.terminaleffects.TerminalEffectPlugin;
import de.kortty.plugin.terminaleffects.TerminalEffectSession;

public final class AmberTerminalEffectPlugin implements TerminalEffectPlugin {

    @Override
    public String id() {
        return "amber";
    }

    @Override
    public String displayName() {
        return "Amber";
    }

    @Override
    public String description() {
        return "Amber monochrome terminal colors.";
    }

    @Override
    public TerminalEffectSession createSession(TerminalEffectContext context) {
        return new TerminalEffectSession() {
            @Override
            public void start() {
                context.applyAppearance(new TerminalEffectAppearance(
                        "Monospaced",
                        null,
                        "#FFB000",
                        "#050200",
                        "#FFD37A",
                        "BLINK_BLOCK"));
            }
        };
    }
}

This example changes appearance only. It does not need an overlay or connector wrapper.

Building and Packaging¶

This repository does not currently define a separately published terminal-effect SDK artifact. Plugin code must compile against the KorTTY classes that contain de.kortty.plugin.terminaleffects.* and against the same public libraries the plugin directly imports, such as SithTermFX or JavaFX.

For development inside this repository, use the MOTHER source-set pattern in build.gradle.kts:

• Put plugin sources under a separate source set
• Include sourceSets.main.output.classesDirs and configurations.compileClasspath in that source set's compile classpath
• Package only the plugin source-set output into a plugin JAR
• Include the ServiceLoader descriptor in the plugin JAR

The MOTHER and effect-pack tasks are the concrete, tested examples:

./gradlew motherTerminalEffectPluginJar
jar tf build/terminal-effect-plugins/kortty-terminal-effect-mother.jar

./gradlew effectPackPluginJar
jar tf build/terminal-effect-plugins/kortty-terminal-effect-pack.jar

A single plugin JAR can register several effects: the effect pack lists all ten provider classes in one ServiceLoader descriptor. Bundled JARs must additionally be listed in src/main/resources/bundled-plugins/terminal-effects.index, otherwise they are never extracted and loaded.

The generated JAR must contain:

META-INF/services/de.kortty.plugin.terminaleffects.TerminalEffectPlugin
de/kortty/plugin/terminaleffects/mother/MotherTerminalEffectPlugin.class
...

For an out-of-tree plugin, the same rule applies: produce one importable JAR containing your plugin classes and META-INF/services/de.kortty.plugin.terminaleffects.TerminalEffectPlugin. If you use libraries that KorTTY does not already ship, shade them into that same JAR or remove that dependency.

Connector Wrapping Guidelines¶

Use wrapConnector(...) only when the effect must observe, pace, or transform terminal I/O. Pure visual overlays and appearance changes should avoid wrapping connectors.

When wrapping:

• Preserve the TtyConnector contract
• Delegate write, resize, waitFor, ready, getName, isConnected, and close unless the effect has a specific reason to change them
• Handle InterruptedException by restoring the interrupt flag and converting to an appropriate checked exception where the TtyConnector method requires it
• Avoid unbounded buffering because terminal output can be large
• Avoid delaying control sequences such as ANSI CSI/OSC commands unless the effect intentionally changes terminal protocol behavior
• Implement TerminalEffectConnectorWrapper so KorTTY can unwrap to the real connector

MOTHER's MotherPacedTtyConnector is the current reference for output pacing. It splits terminal output into immediate control sequences and paced visible characters, uses the user animation speed, and bypasses pacing for high-volume output to keep the terminal responsive.

Overlay Guidelines¶

Overlays should be JavaFX nodes added to context.overlayRoot().

Good overlay behavior:

• Set setMouseTransparent(true) so the terminal keeps receiving mouse input
• Set setManaged(false) if the overlay should not affect layout
• Bind width and height to the overlay root
• Stop timelines/animations and unbind properties in stop()
• Keep drawing cheap enough for repeated repainting
• Remove the overlay node from overlayRoot() on shutdown
• Release the canvas backing store while the tab is in the background: a full-window canvas texture per hidden tab can exhaust the Prism texture pool once several effect tabs are open, which crashes rendering. All built-in effects (MOTHER and the effect pack) unbind and shrink their overlay canvas to 0x0 while it is not visible in the scene and rebind when the tab is shown again

For split terminals, decide whether the overlay should cover the full terminal tab or track individual SithTermFX widgets. context.widgets() can return more than one widget.

Animation Speed¶

Animation speed is a shared user setting for terminal effects:

• Minimum: 1x
• Slider maximum: 10x
• Numeric maximum: 99x
• Invalid, non-finite, or non-positive values normalize to 1x

Use context.animationSpeed() when computing effect timing. The convention used by MOTHER is:

long scaledDelayMillis = Math.max(1L, Math.round(baseDelayMillis / context.animationSpeed()));

Do not persist a separate speed value inside the plugin. KorTTY stores the connection/session speed and passes the normalized value through TerminalEffectContext.

Import, Export, and Persistence¶

External imports:

• The user selects a .jar in Plugins > Terminal Effects > Import...
• KorTTY copies it into ~/.kortty/plugins
• The plugin manager reloads plugins immediately

Exports:

• A plugin is exportable when it was loaded from a real source JAR
• Bundled plugins are exportable because KorTTY copies their bundled JARs to ~/.kortty/bundled-plugins/terminal-effects before loading them
• Exporting one of the ten effect-pack effects exports the whole kortty-terminal-effect-pack.jar, because the JAR is the export unit
• Application-classpath plugins without a source JAR are not exportable

Persistence:

• Disabled plugin IDs are stored in ~/.kortty/terminal-effect-plugins.disabled
• Saved connections and restored sessions store the selected terminal-effect plugin ID and animation speed
• If a saved plugin ID is unavailable or disabled, KorTTY cannot activate it and logs the issue

Compatibility and Safety Checklist¶

Before shipping a plugin JAR:

• Use a stable lowercase plugin ID matching [a-z0-9][a-z0-9._-]{0,63}
• Keep displayName() and description() non-empty and user-readable
• Include exactly one ServiceLoader descriptor for every provider class
• Keep JavaFX mutations on the JavaFX application thread
• Make stop() safe to call multiple times
• Remove listeners, timelines, bindings, and overlay nodes in stop()
• Avoid blocking the JavaFX application thread
• Avoid spawning unmanaged long-running threads
• Keep connector wrappers transparent and implement TerminalEffectConnectorWrapper
• Avoid logging secrets or raw terminal output unless the user explicitly chose that behavior
• Test with fast output, large output, ANSI color output, split terminals, reconnect, plugin disable/enable, and application shutdown

Manual Validation¶

Build and inspect:

./gradlew motherTerminalEffectPluginJar
jar tf build/terminal-effect-plugins/kortty-terminal-effect-mother.jar

Run KorTTY:

./gradlew run

Validate plugin management:

1. Open Plugins > Terminal Effects
2. Confirm all built-in plugins appear with name and description
3. Select a row and confirm the animated preview plays next to the table
4. Disable and enable a plugin
5. Export one and inspect the exported JAR with jar tf
6. Import the exported JAR into a clean KorTTY config or another build

The terminalEffectPreviewSmoke Gradle task renders every built-in preview and the manager dialog headless into build/smoke/ for a quick offline check.

Validate session behavior:

1. Activate the effect from the terminal context menu or View > Terminal Effect
2. Select it in Quick Connect and in a saved Connection Manager entry
3. Change animation speed with the slider and with the numeric field
4. Run commands that produce slow, fast, colored, and large output
5. Reconnect the tab and close it
6. Check ~/.kortty/kortty.log for plugin loading warnings, duplicate IDs, invalid providers, or stop/cleanup errors
